Repair kit for pedal thread 5/8"x24 tpi (left & right)

Repair kit for pedal thread 5/8"x24 tpi (left & right)

Name: Repair kit for pedal thread 5/8"x24 tpi (left & right)
SKU: PE-04700
Availability: InStock

(Code: PE-04700)

In Stock

Ideal for repairing damaged threads in cranks and saving high-end cranks.
First, you have to cut new 5/8’’x24 TPI oversized threads in crank arms.

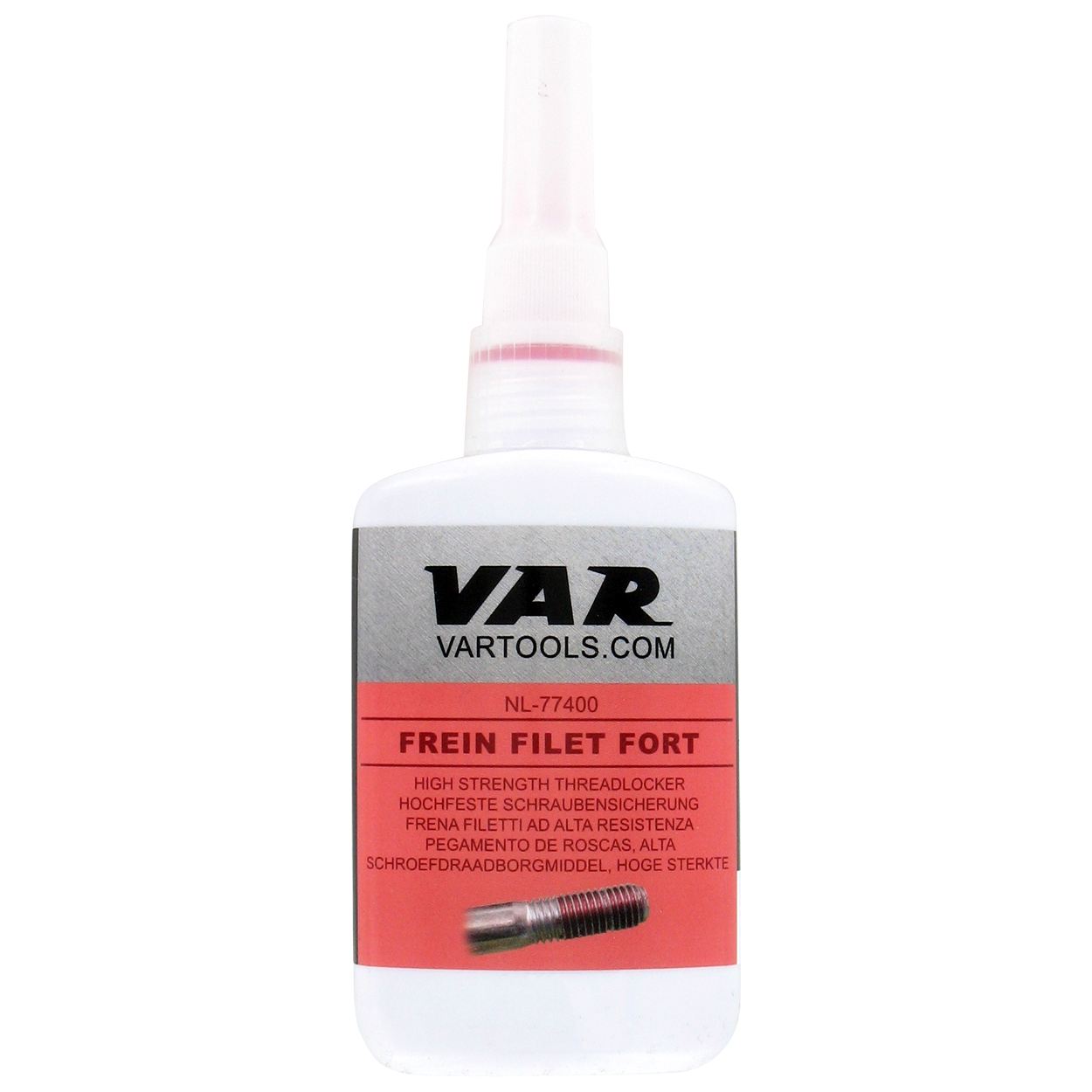

Apply some thread lock NL-77400 (page 40) to the outside of the threaded
insert and then thread it into the new threading in the crank.
Finally, fit pedal spindle into the insert.

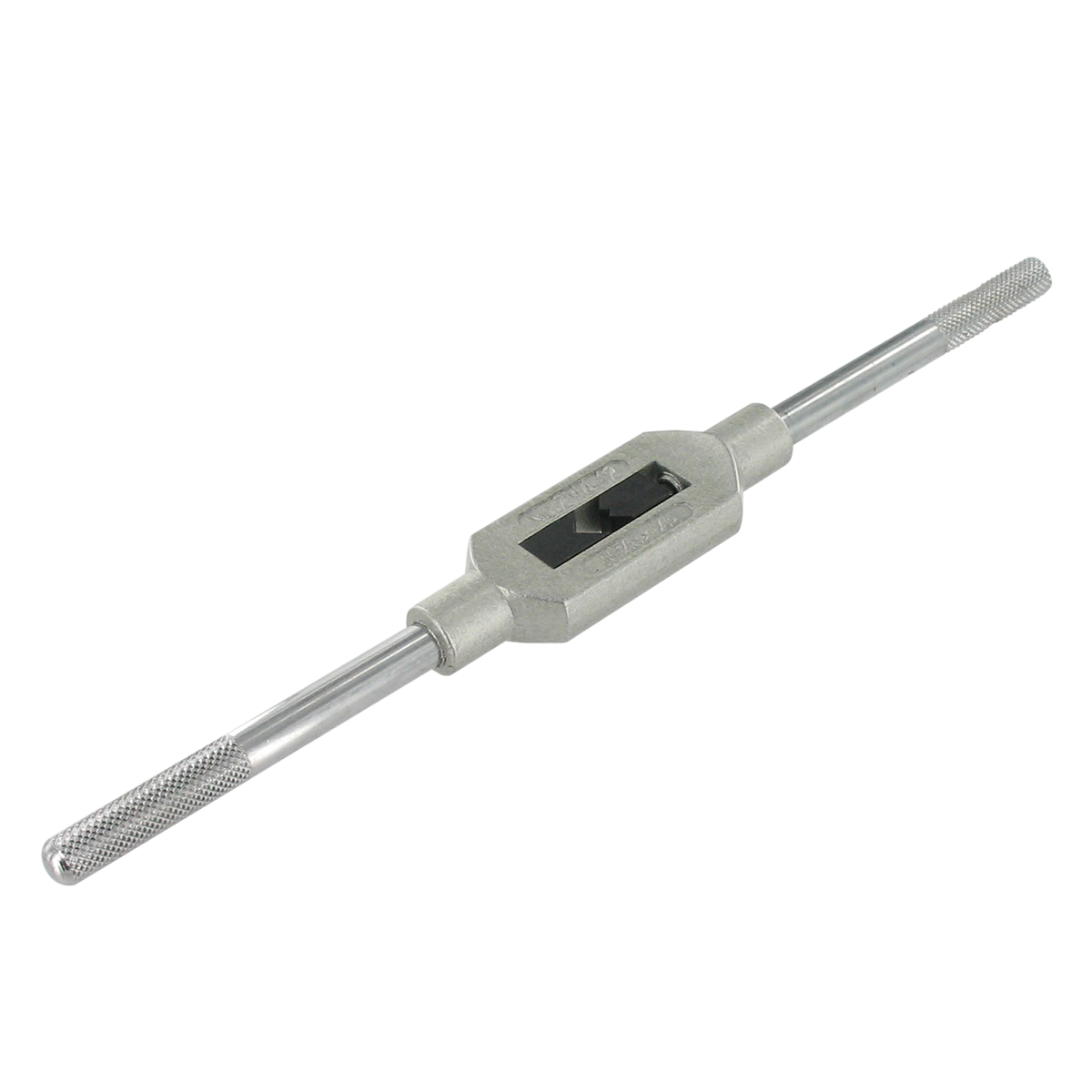

Both taps fit conventional tap handle DV-04330

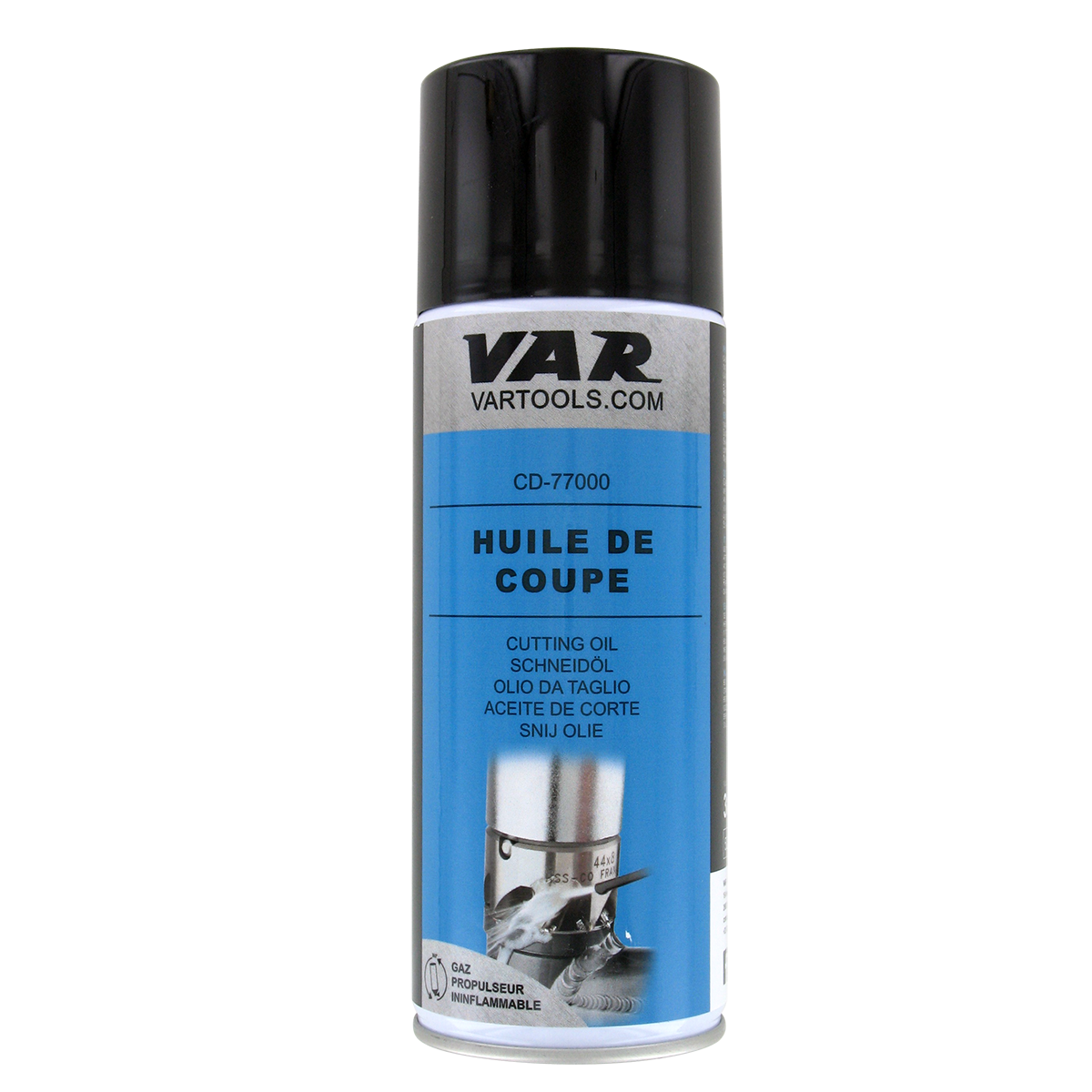

To be used with cutting oil CD-77000

221g

The kit includes :
- 1 set of 2 reaming taps in 5/8’’x24 tpi (L&R)

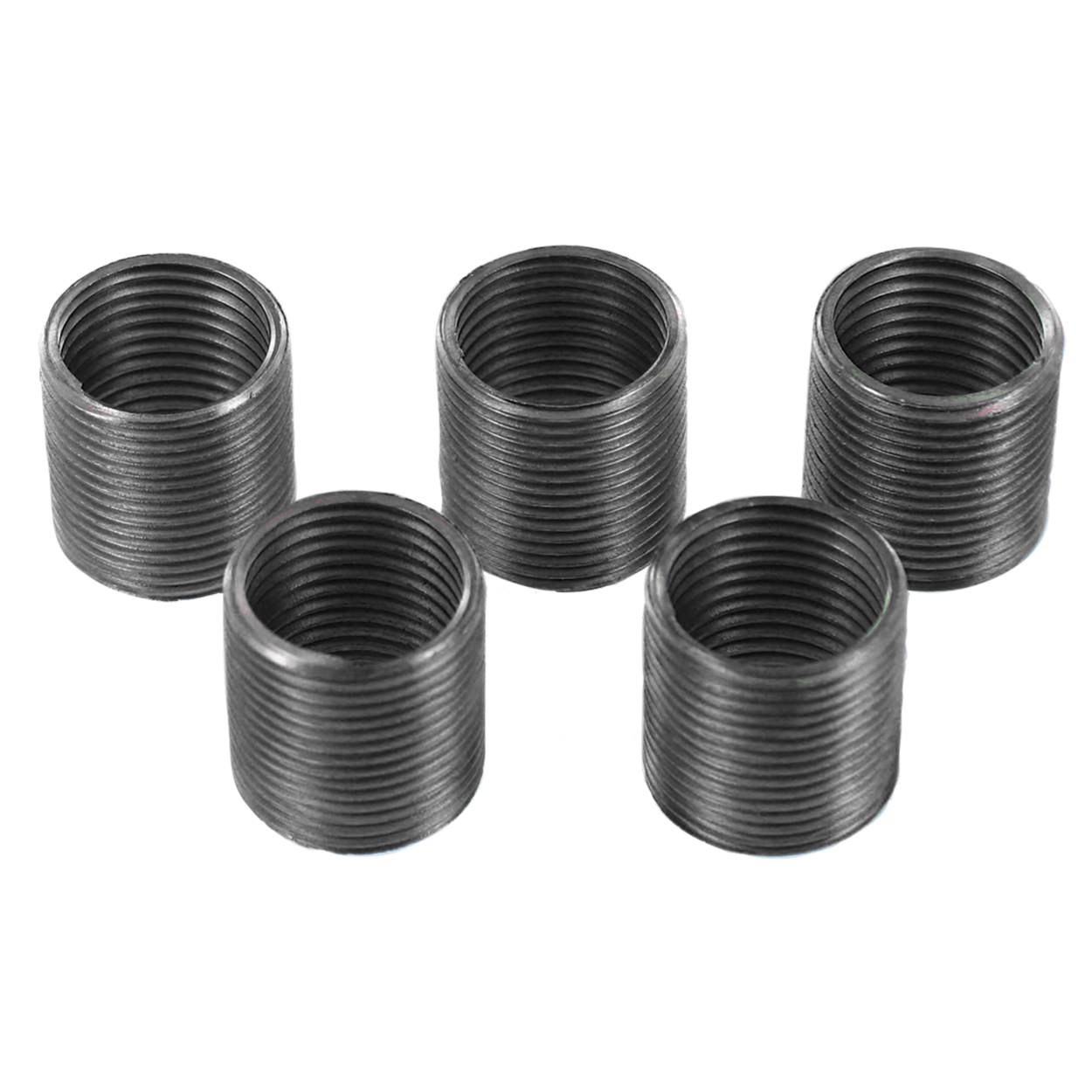

- 5 threaded bushings for right crank arms

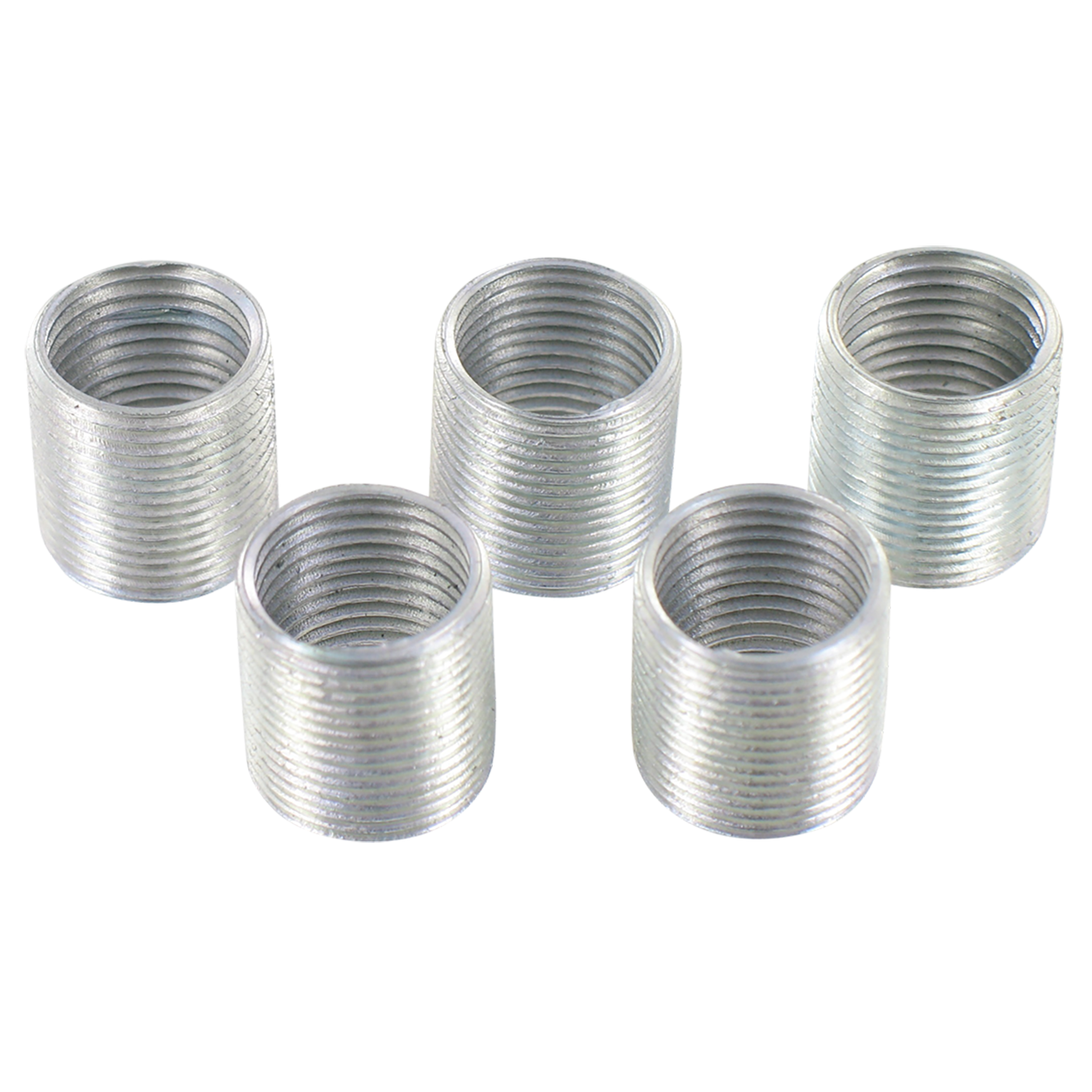

- 5 threaded bushings for left crank arms
- delivered in a compartmented plastic box

DOCUMENTATION

Download here the user manual
